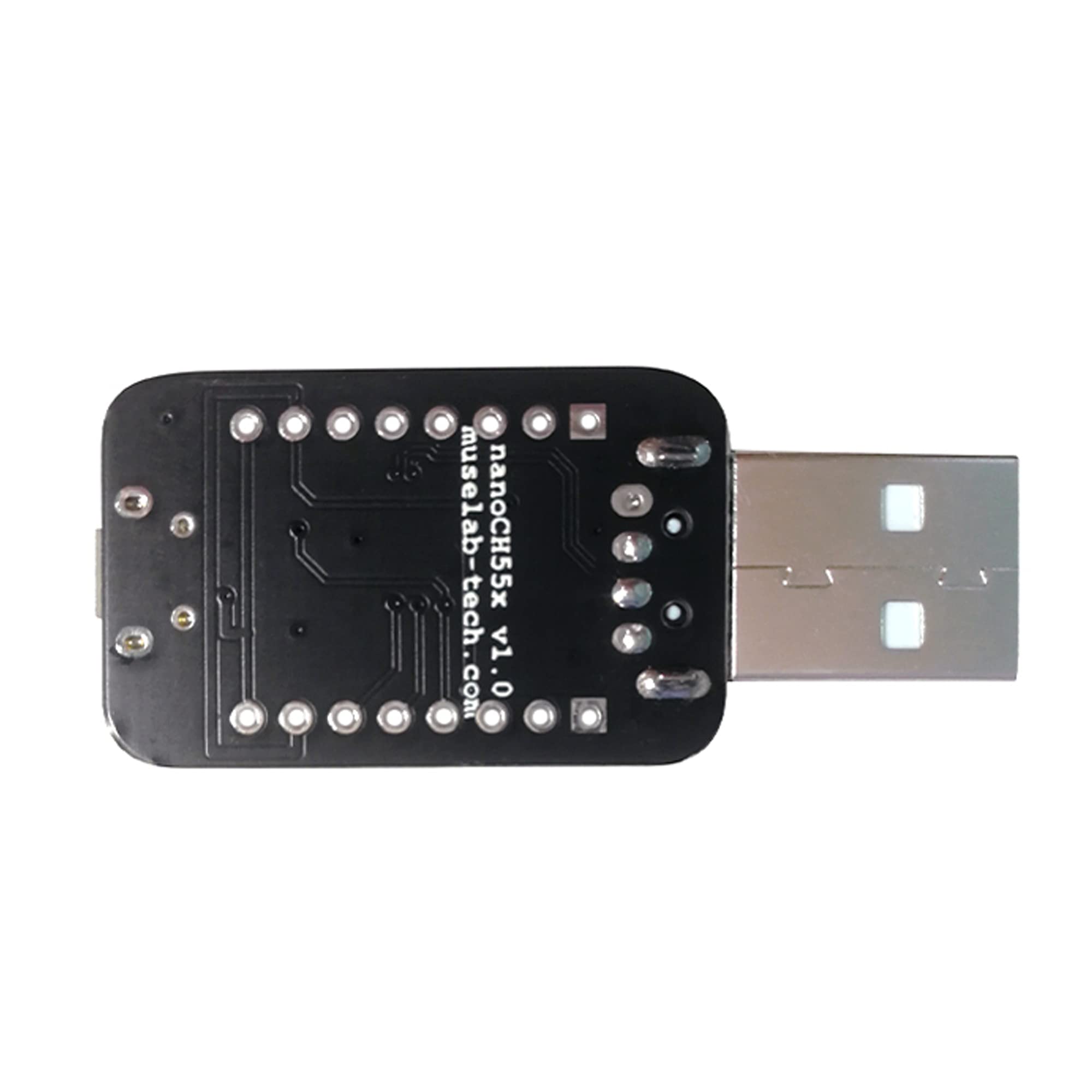

Product introduction -Enhanced 8051 core Enhanced E8051 core micro-controller compatible with MCS51 instruction set, 79% instructions are single-byte and single-cycle instruction, the average instruction speed is 8～15 times faster than the standard MCS51. It has unique XRAM fast data copy instruction. The highest system frequency can reach 24MHz. -Built-in Flash/RAM Built-in 16KB program memory ROM, 256 bytes internal iRAM and 1KB on-chip xRAM, which supports DMA direct memory access -USB : Embedded USB controller and USB transceiver, supporting USB2.0 full speed and low speed host or device mode. Support up to 64-byte data packet, built-in FIFO, support DMA -UART: 2 full-duplex asynchronous serial ports, both of them support high baud rate communication. UART0 is a standard MCS51 serial port -Timer: 3 groups of timers/counters, supporting 2 signal capture and 2 PWM output -SPI: 1 SPI communication interface, built-in FIFO, support master-slave mode -ADC: 4-channel 8-bit A/D analog-to-digital converter, supporting voltage comparison -Touch: 6-channel capacitance detection, supporting up to 15 touch buttons and independent timed interrupt -Small size: 4.8cm * 2.0cm

付属品:	CH552 Board
付属コンポーネント:	CH552 Board
メーカー名:	Miistore
型番:	CH552G
CPUスピード:	24 MHz
ブランド名:	MiiElAOD
通信・接続インターフェース:	USB
オペレーティングシステム:	Linux
接続技術:	USB
モデル名:	CH552G
メーカー:	Miistore
ブランド:	MiiElAOD
プロセッサ数:	1
保証内容:	6 Month Warranty Against Manufacturer Defects
USBポート数:	1
ワイヤレス通信規格:	802.11b
接続方式:	USB
製造元リファレンス :	Mii-00617
メモリストレージ容量:	16 KB
ワイヤレス対応:	802.11b
同梱商品:	CH552 Board
ASIN:	B0BRW67ZK5
電池付属:	いいえ
OS1:	Linux
コンピュータCPU速度:	24 MHz
最大メモリ容量(GB):	16 KB
コンピュータCPU製造会社:	MiiElAOD
CPUメーカー:	MiiElAOD
対応OS:	Linux
USBポートの総数:	1
Amazon.co.jp での取り扱い開始日:	2023/1/8
電池使用:	いいえ
梱包サイズ:	10 x 5 x 5 cm; 500 g
