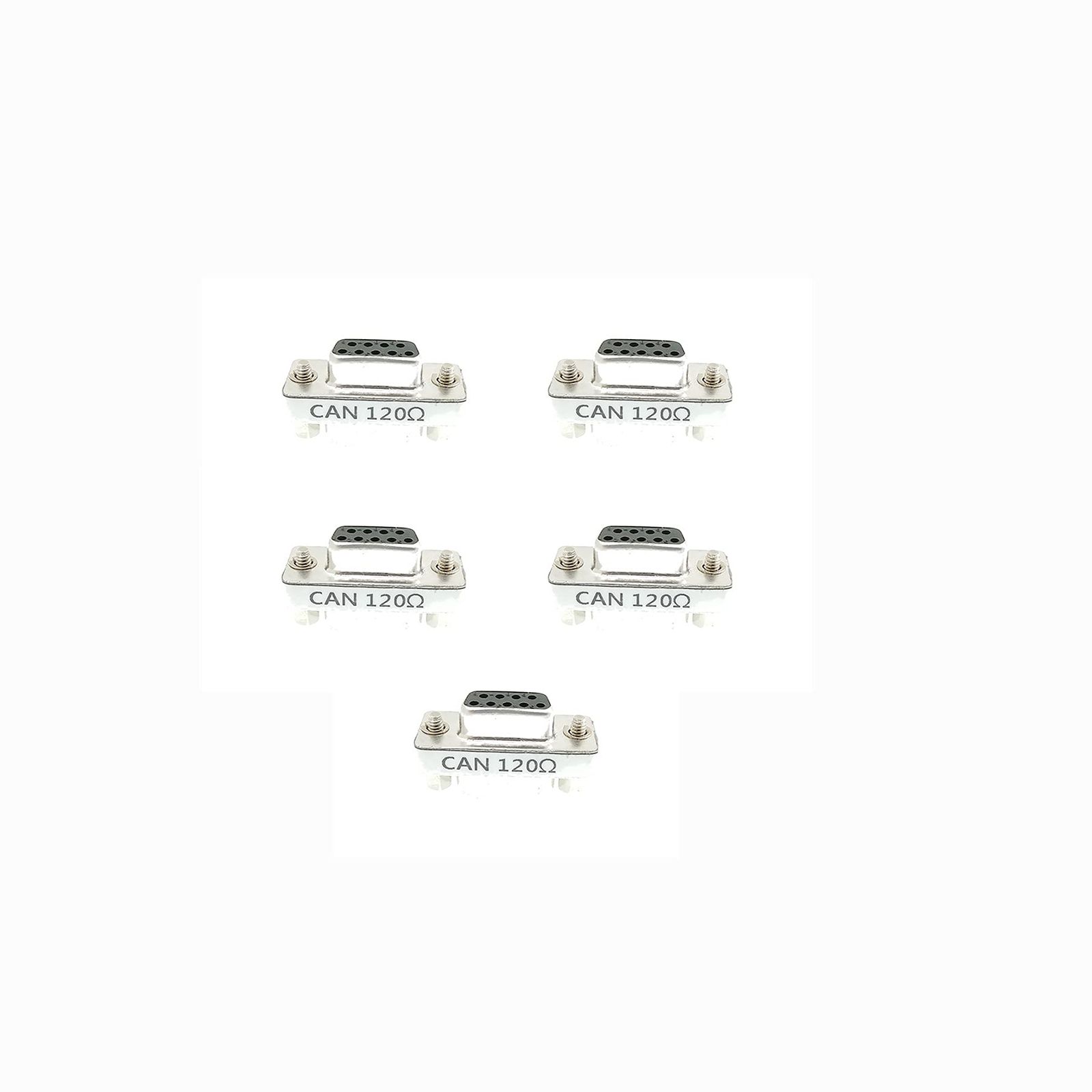

新品 CAN DB9 120ohmCAN Bus Terminal ResistanceDB9 Female to Male Connector with Accuracy of one Thousandth 120 Ohm Resistancehigh

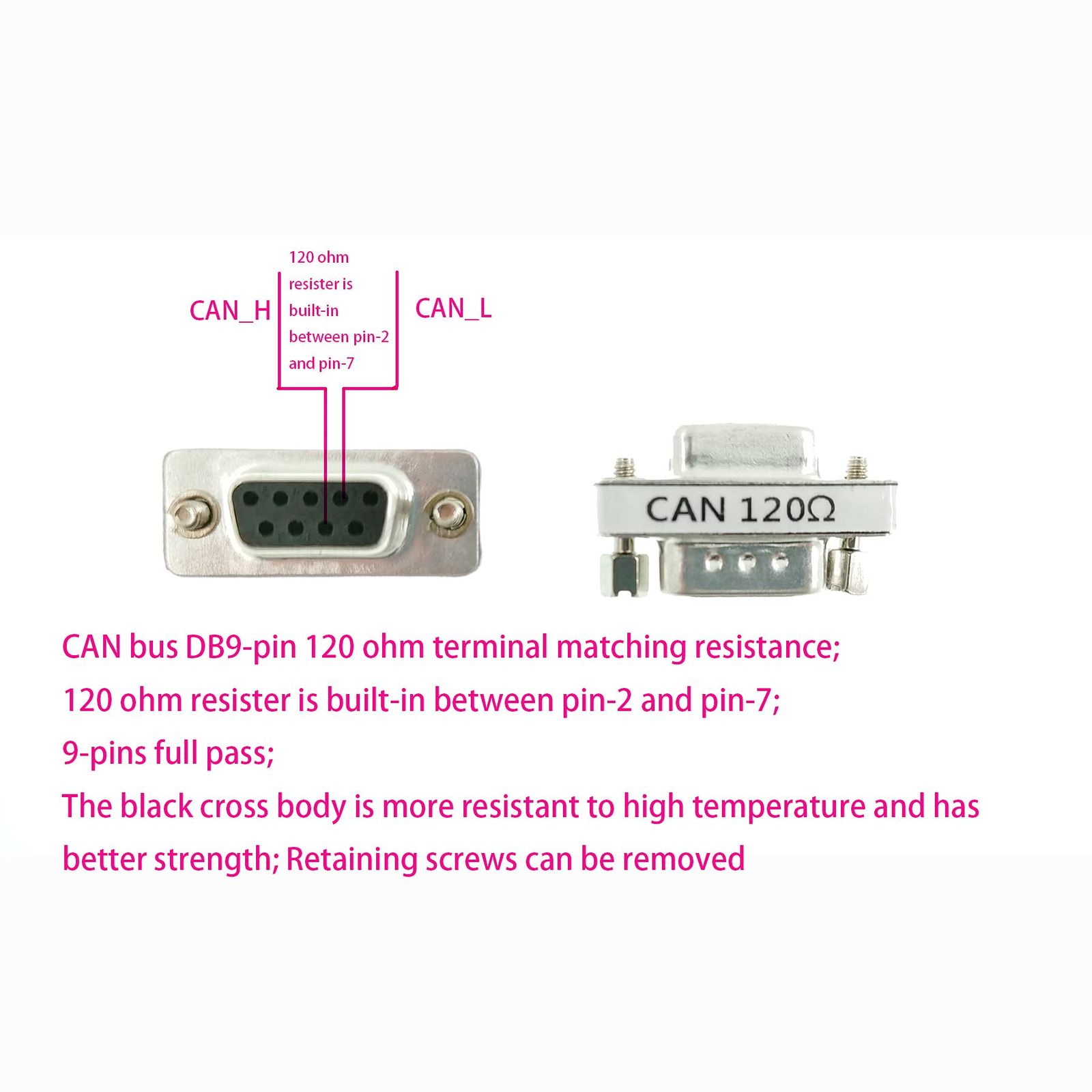

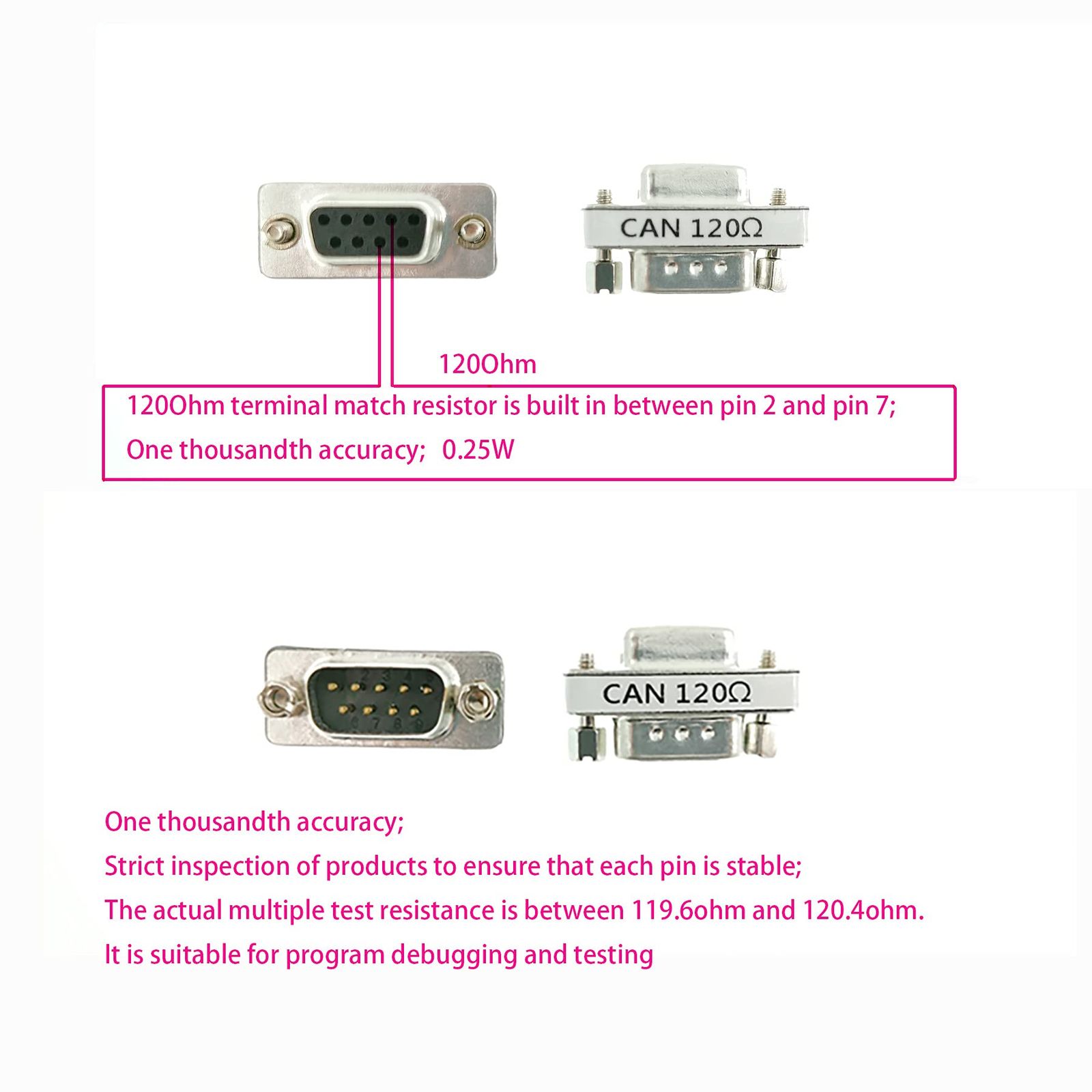

ご覧いただきありがとうございます。 当店では他サイトにも商品を販売しているため まれに売り切れや取り寄せ中となる場合がありますがご了承ください。 迅速発送を心掛けております。 CAN DB9 120ohmCAN Bus Terminal ResistanceDB9 Female to Male Connector with Accuracy of one Thousandth 120 Ohm Resistancehigh-Precision up to one Thousandth (CANDB9120ohm5PCS) BUELEC CANDB9120Ohm CAN bus DB9 pin terminal matching resistance between pin2 and pin7 built-in high-precision up to one thousandth 120 ohm resistance BUELEC CANDB9120Ohm DB9 Male-to-female interface plugged directly into the DB9 interface of the any bus analyzer no need changing exist cable BUELEC CANDB9120Ohm use custom collate better strength high temperature resistance BUELEC CANDB9120Ohm power is calculated in accordance with TI's CAN chip communication parameterssuitable for communication error rate has strict requirements BUELEC CANDB9120Ohm Compatible with PCANGC-CAN-USBPeak-CANZLG-USBCANVECTOR - CANVechle SPYetc.... most of can analyzer in market Description Only this CANDB9120Ohm connector needs to be connected directly to the DB9 port of the CAN device or can analyzer. CAN bus communication is defined PIN2 is L signalPIN7 is the H signal. The resistance of 120 ohms added between thePIN2 and PIN7 is used to filter out the bus terminal echo interference and ensure the integrity of the communication protocol; If the 120 ohm resistance is not added the echo reflection on the communication will be caused the reflected wave will overlap with the correct wave resulting in the waveform beyond the CAN level definition range directly resulting in incomplete communication protocol thus affecting the accuracy of the communication values; Packing List CANDB9120Ohm *5 最後まで確認ありがとうございました。 注意点 ・配送会社の指定はできかねます。 ・営業所止めは受けておりません ・ご注文後のお問い合わせはメッセージよりお願い申し上げます。
