NUC BOX-1360P/D4
[特徴]
・Intel 13th Gen (Raptor Lake-P) Core Processors i7-1360P
・2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
・1 x USB4/Thunderbolt4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
・2 x Intel 2.5 Gigabit LAN
・Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C)
・TPM 2.0 onboard IC
・Supports Intel vPro
・19V/120W Power Adapter
・117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88"), Fanned Barebone
[仕様]
Processor System
| CPU | Intel 13th Gen (Raptor Lake-P) Core Processors
NUC BOX-1360P/D4 (i7-1360P, 4P+8E) |
|---|
| Chipset | MCP |
|---|
| BIOS | AMI SPI 256 Mbit |
|---|
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|
| Capacity | 64GB (32 GB per DIMM) |
|---|
| Socket | 2 x 260-pin SO-DIMM |
|---|
Graphics
| Controller | Intel Iris Xe Graphics |
|---|
| HDMI | HDMI 2.0b
Max resolution up to 4096x2160@60Hz |
|---|
| DisplayPort | DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz |
|---|
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
|---|
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 |
|---|
Audio
| Interface | Realtek ALC233/ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I226LM/I226V with 10/100/1000/2500 Mbps |
|---|
| Connector | 2 x RJ-45 |
|---|

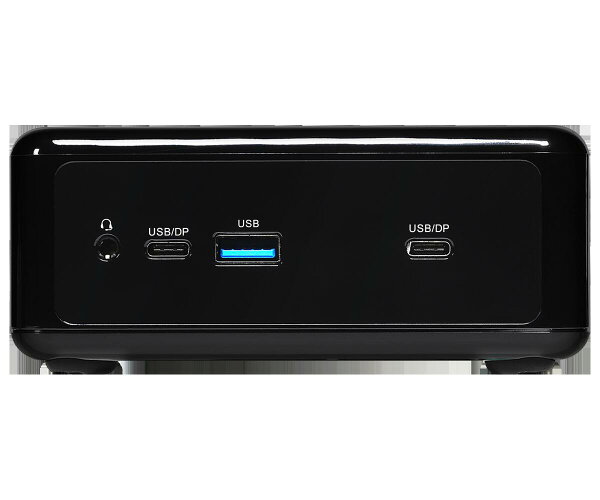

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt 4 (Supports DP1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list. |
|---|
| Audio | 1 (headphone & microphone jack) |
|---|

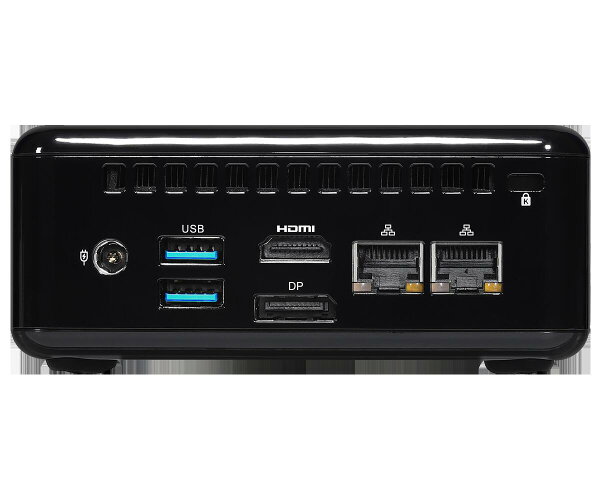

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|
| DisplayPort | 1 x DP 1.4a |
|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
|---|
| USB | 2 x USB 3.2 Gen2 (Type-A) |
|---|
| DC Jack | 1 |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket) |
|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
|---|
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|
| Power On | AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
|---|
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|
| Storage Temp | -40° C ~ 85° C |
|---|
| Operating Humidity | 5% ~ 90% |
|---|
| Storage Humidity | 5% ~ 90% |
|---|
Mechanical
| Mounting | VESA mount |
|---|
| Dimensions (L x W x H) | 117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88") |
|---|
| Weight | Net Weight:1.0Kg |
|---|
Others
| OS Support | Windows 10/11 |
|---|
| TPM | TPM 2.0 onboard IC |
|---|
| Certifications | CE, FCC |
|---|
| Packing List | 1 x 19V/120W Power Adapter
1 x VESA mount bracket |
|---|
JAN：4711420961654
